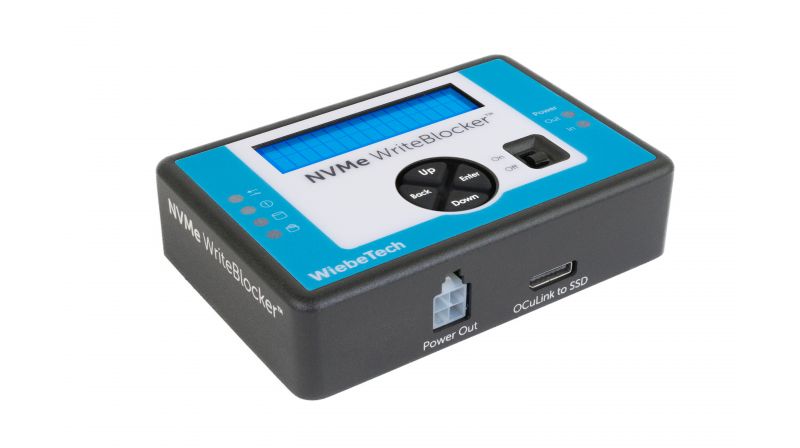

NVMe WriteBlocker

Product name: NVMe WriteBlocker

Host (I/O) Ports

(1) USB 3.2 Gen 2 Type-C: up to 10 Gbps


Drive Types Supported

• PCIe/NVMe M.2 (M Key) and U.2 drives

Supports S.M.A.R.T. disk info

Yes

Number of LEDs

6

Description of LEDs

Write-block status, error detection, drive access, hidden area detection, DC power input, +5V/+12V power output

LCD Screen

Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info

2 lines x 16 characters width

LCD Backlight

Yes

Navigation menu

Button-driven LCD menu system

Operating system compatibility

Windows 11, 10, and 8.1
macOS 10.15 “Catalina” or newer
Red Hat Enterprise Linux and Ubuntu LTS


Power switch

2 position: On / Off

Dimensions

2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)

Weight

0.40 lbs. (0.18 kg)

Write Blocking

Yes

Compliancy

FCC, CE, RoHS, RCM

Warranty

WiebeTech provides a 3-year limited warranty for this product.

Technical Support

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit wiebetech.com/support or call us at +1 (360) 816-1800.
